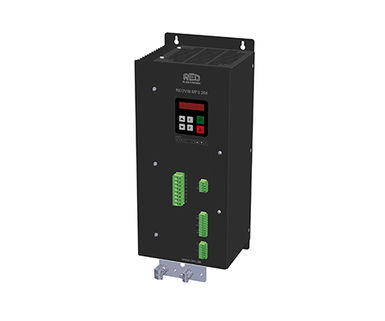

Frequency Converter Reovib MFS 268 HP-HV2

IP 20, High-power version

DESCRIPTION

A high-performance version of the frequency control device REOVIB MFS 268, can be used for mains voltages of 400 V with max. 16A output current. Available as IP20 control cabinet versions.

We also offer a suitable control cabinet system according to customer-led design. Special designs of the REOVIB MFS 268 HP can also be converted.

Interfaces

ADVANTAGES

  • Independent of the mains input frequency
  • Able to automatically determine the resonant frequency of the vibratory conveyor system (with additional vibration amplitude sensor) and regulate the vibration amplitude and maintain a constant feed rate irrespective of load or changes in the mechanical system
  • Field bus interfaces: ProfiNet, EtherNet/IP, EtherCAT, CAN-Bus, ProfiBus, DeviceNet
  • Available with UL/CSA approval depending on the type (Optional)
  • Conveyor frequencies are adjustable between 5…300 Hz
  • Mains voltage compensation with constant vibration amplitude
  • All settings can be made using the integrated display
  • Sinusoidal output current
  • Can be used on 400 V mains input
  • User settings can be stored
  • Fill level/overflow control
  • Versions available in various protection classes and connector options
  • MFS 269 HP is available with an AC output signal for use with permanent-magnet armature

TECHNICAL SPECIFICATION
