Resistor Reohm Series Bw 156 (Ul)

Max. continuous power: 7.500 W

DESCRIPTION

The BW 156 braking is designed for drives with frequency converters of small to medium output. Installation in and outside the control cabinet is possible.
In addition to the high protection class IP66, the profile resistors REOHM 156 are also UL-certified and have a power of 50 W up to 7.500 W (as combination).

Optional

• With temperature switch
• Cover for protection against high surface temperatures

ADVANTAGES

• compact construction
• easy installation
• short-circuit proof
• suitable for the use with any frequency drive
• use even in rough conditions
• standing or lying assembly
• highly resistive on overload

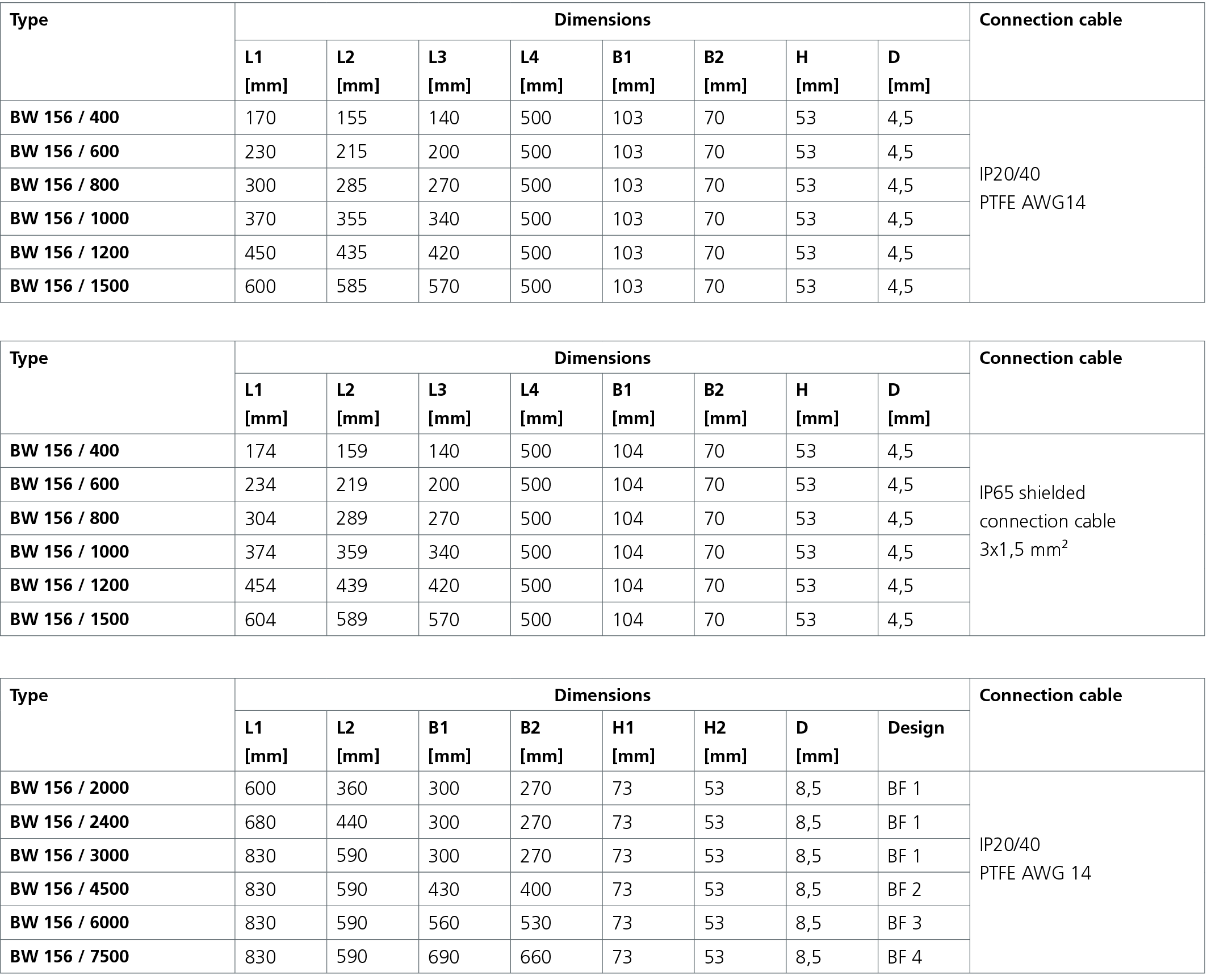

TECHNICAL DATA

• Resistance values: 0,3 – 2000 Ohm
• Continuous power: 400 – 7500 W
• max. operating voltage: 900 V
